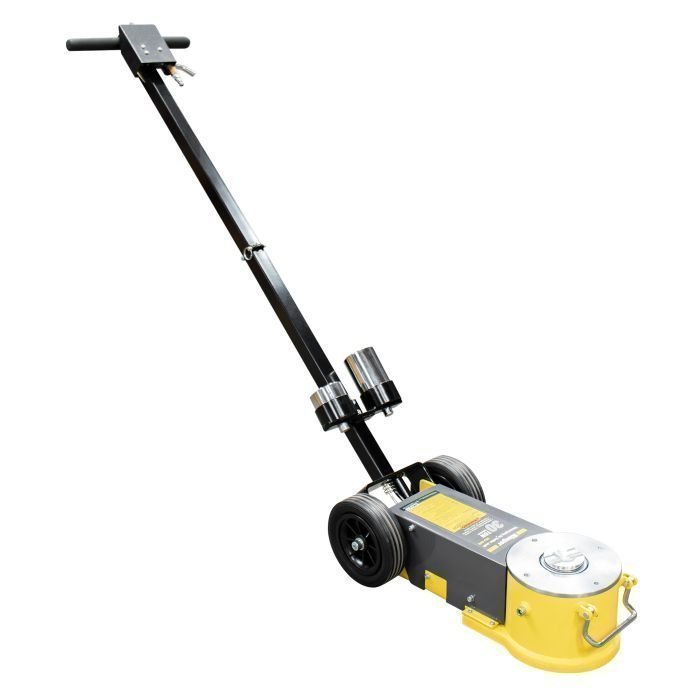

The true king of rolling floor jacks, the Ranger rules the garage with its mighty 60,000-lb. lifting capacity. Simply hook it up to a shop air line and experience total ease of use and incredible safety when lifting five-axle semis and other heavy-duty equipment.
Features
- 60,000 lbs. Lifting Capacity
- Designed For Heavy Commercial Use
- Air-Hydraulic Operation
- Lowered Profile For Low Ground-Clearance Vehicles
- Hardened Alloy-Plated Telescoping Ram For Maximum Durability
- Heavy-Duty Steel Saddle
- Large Rubber Wheels For Easy Maneuverability
- Compact Design Fits Easily Between Tandem Wheels
- Dead-Man Controls For Safe Operation
- Long “T” Handle For Easy Positioning
- T Handle Can Be Locked In Three Different Positions
- Double-Sealed For Longer Service Life
- Air Valve With Integrated Filter
- Heavy-Duty Air Motor Provides Maximum Power
- Sealed Hydraulic Unit Prevents Contamination
- Built-In Safety Valve Prevents Jack From Being Used Beyond Its Rated Capacity
- Additional Lifting Saddles Included
Specifications
- Lifting Capacity – 1st Stage: 60,000 lbs. (27,216 kg)
- Lifting Capacity – 2nd Stage: 30,000 lbs. (13,607 kg)
- Lowered Height: 6.5″ (150 mm)
- Raised Height: 6″ – 12″ (152 mm – 305 mm)
- Chassis Width: 12.5″ (318 mm)
- Chassis Length: 22.5″ (572 mm)
- Shipping Weight: 108 lbs. (49 kg)
- Shipping Dimensions: 28″ x 15″ x 11″ (711 mm x 381 mm x 279 mm
