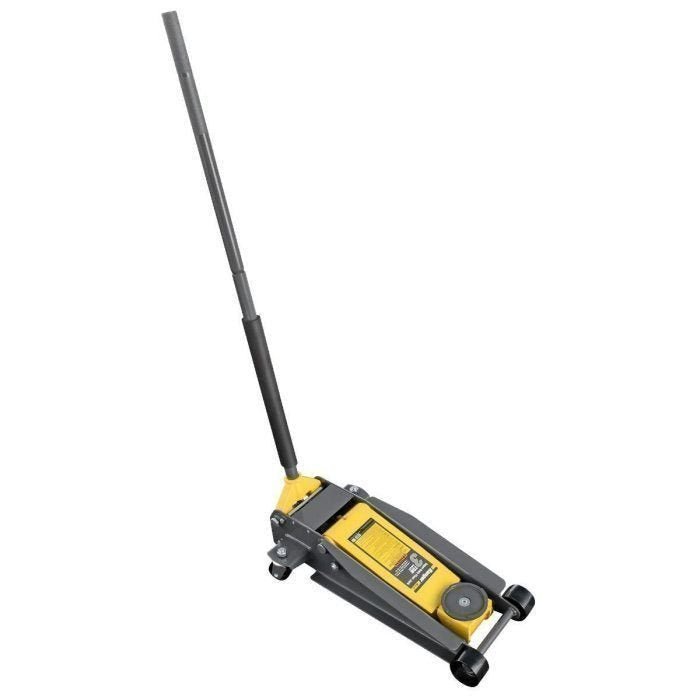

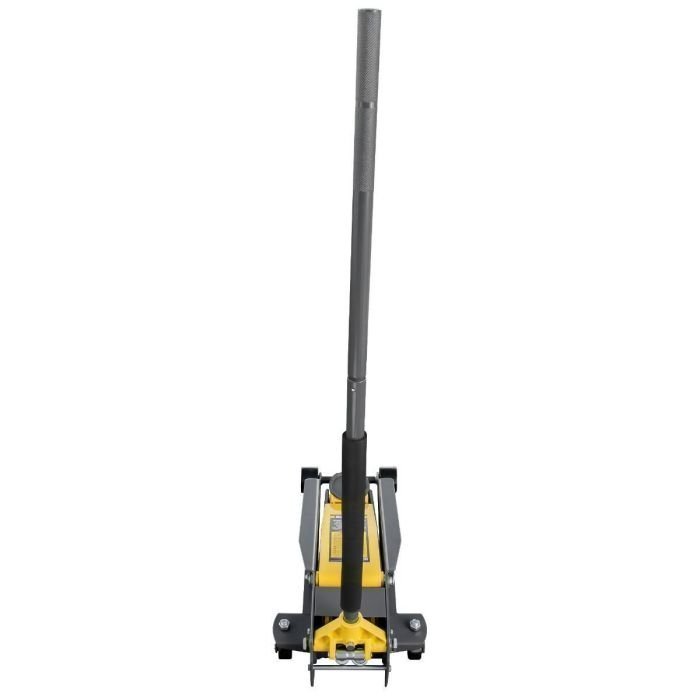

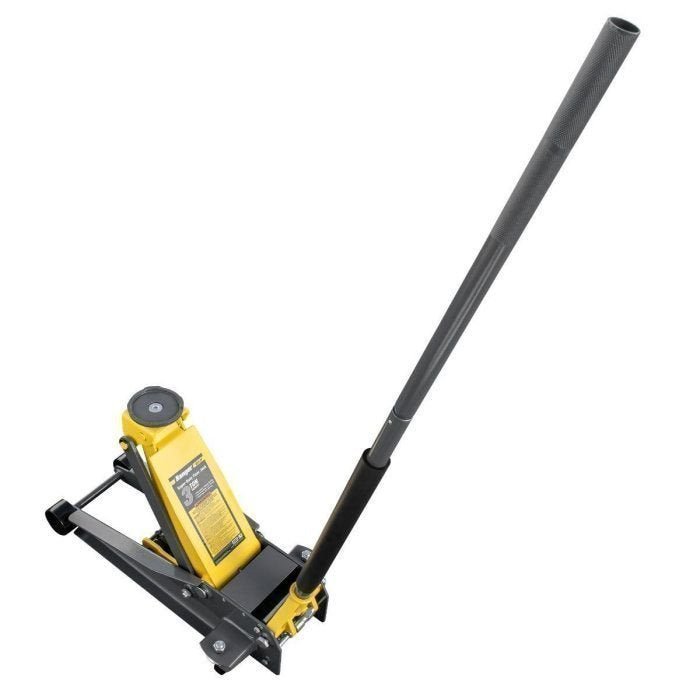

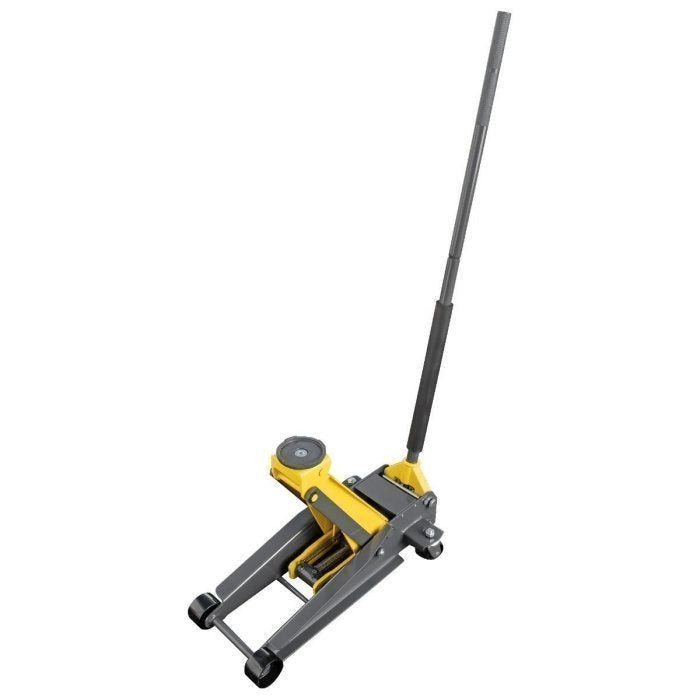

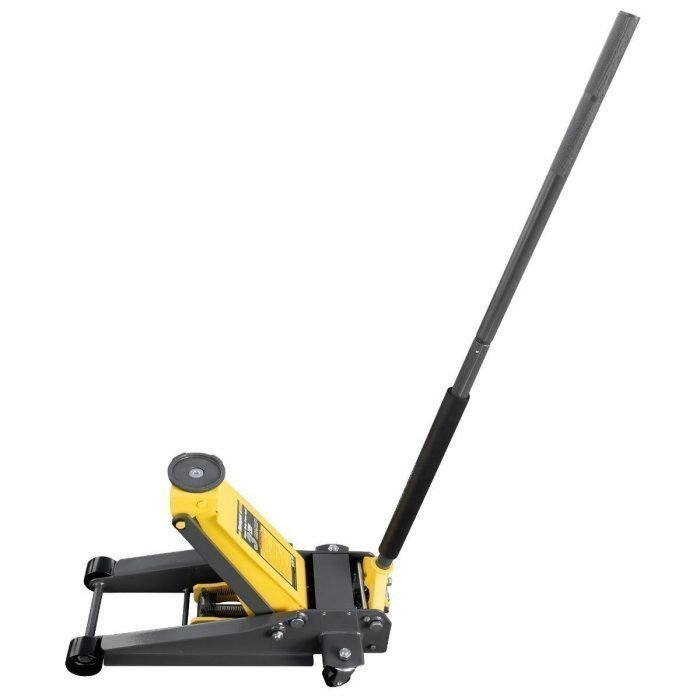

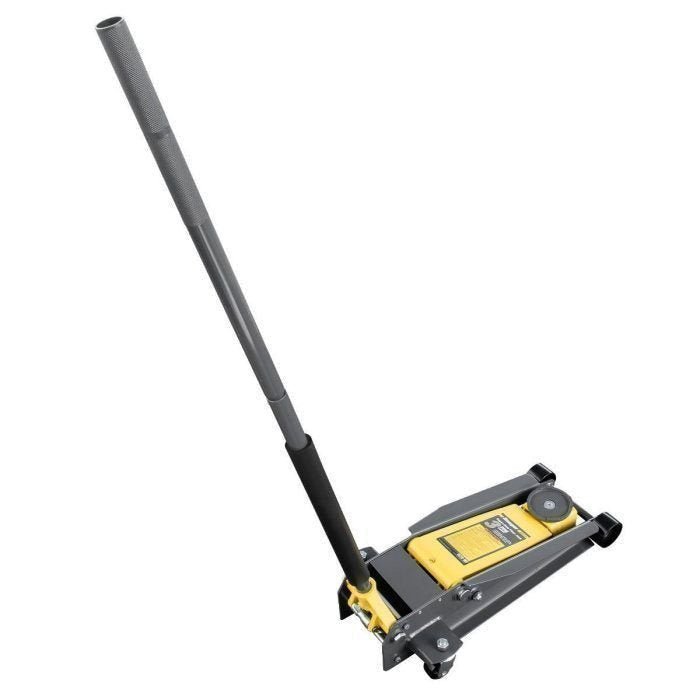

The Ranger 3-Ton Professional Series Racing Style Plunger U-Joint Floor Jack is a 3-ton capacity super-duty garage floor jack that offers a 21″ max rise and a low-profile design that’s perfect for professional shops and home garages. The specially designed flanged edges will grip the frame or lift point of your vehicle, preventing slippage and maximizing safety. Fits most light-duty lifting applications.
Features
- 6,000 lbs. Lifting Capacity
- Alloy-Plated Ram for Longevity
- Universal Joint Release
- Roller-Cam Plunger Assembly
- Heavy Gauge Steel Construction Throughout
- Swivel Casters For Easy Mobility
- Professional Model Designed For Heavy Use In A Busy Auto Shop
- Heavy Steel Construction Eliminates Frame Twist Under Extreme Stress
- Double-Sealed Hydraulics Prevents Contamination
- Built-In Safety Overload System To Prevent Failure
- Flanged Side Plates Provide Increased Strength
- Welded Lift Arm Assembly for Strength and Rigidity
Specifications
- Lifting Capacity: 6,000 lbs. (2,722 kg)
- Lowered Pad Height: 4.75″ (121 mm)
- Raised Height: 20.5″ (521 mm)
- Front Overall Width: 11″ (279 mm)
- Rear Overall Width: 14.5″ (368 mm)
- Chassis Length: 28″ (711 mm)
- Shipping Weight: 86 lbs. (39 kg)
- Shipping Dimensions: 29″ x 15″ x 7″ (737 x 381 x 178 mm)
- Warranty: (3) Year Limited
