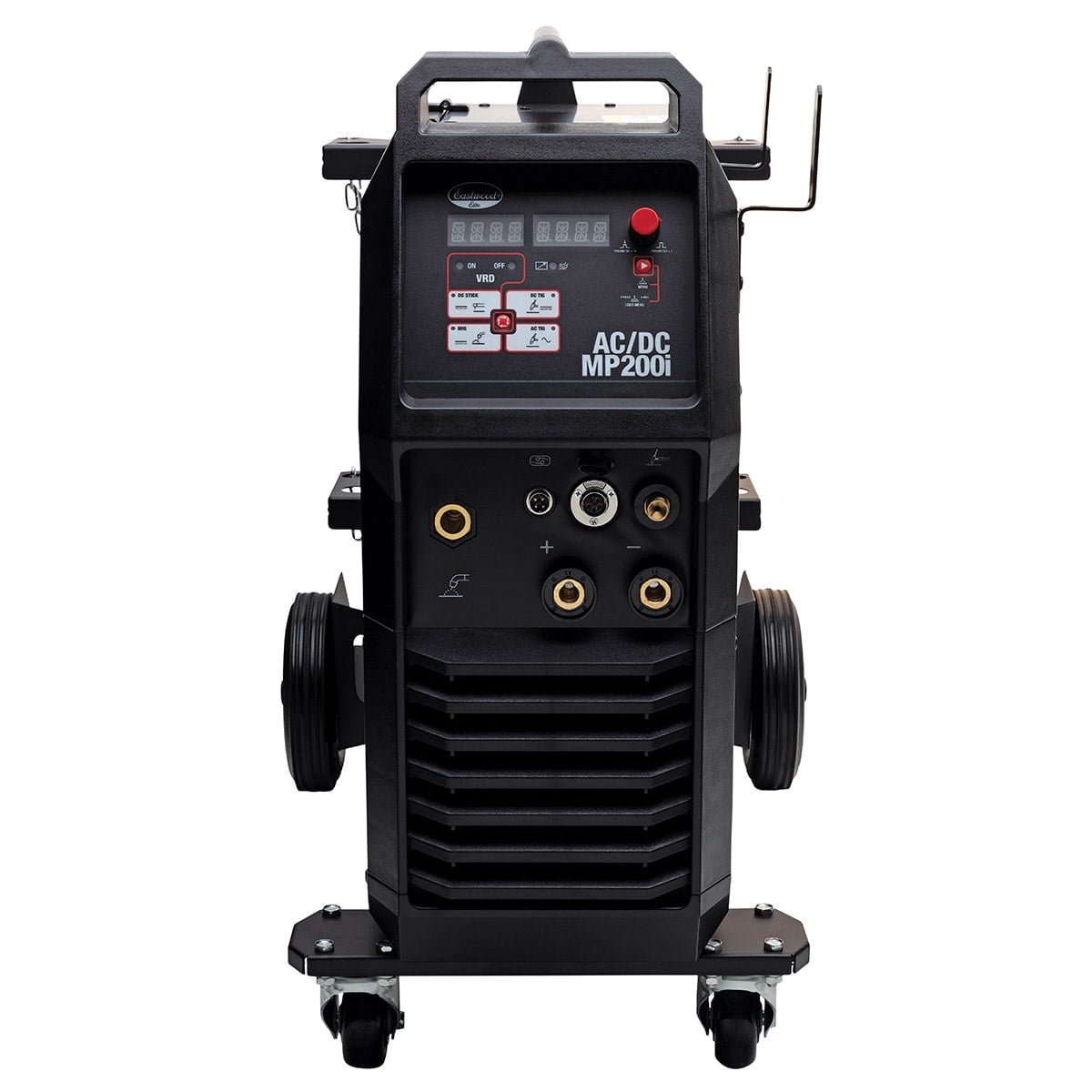

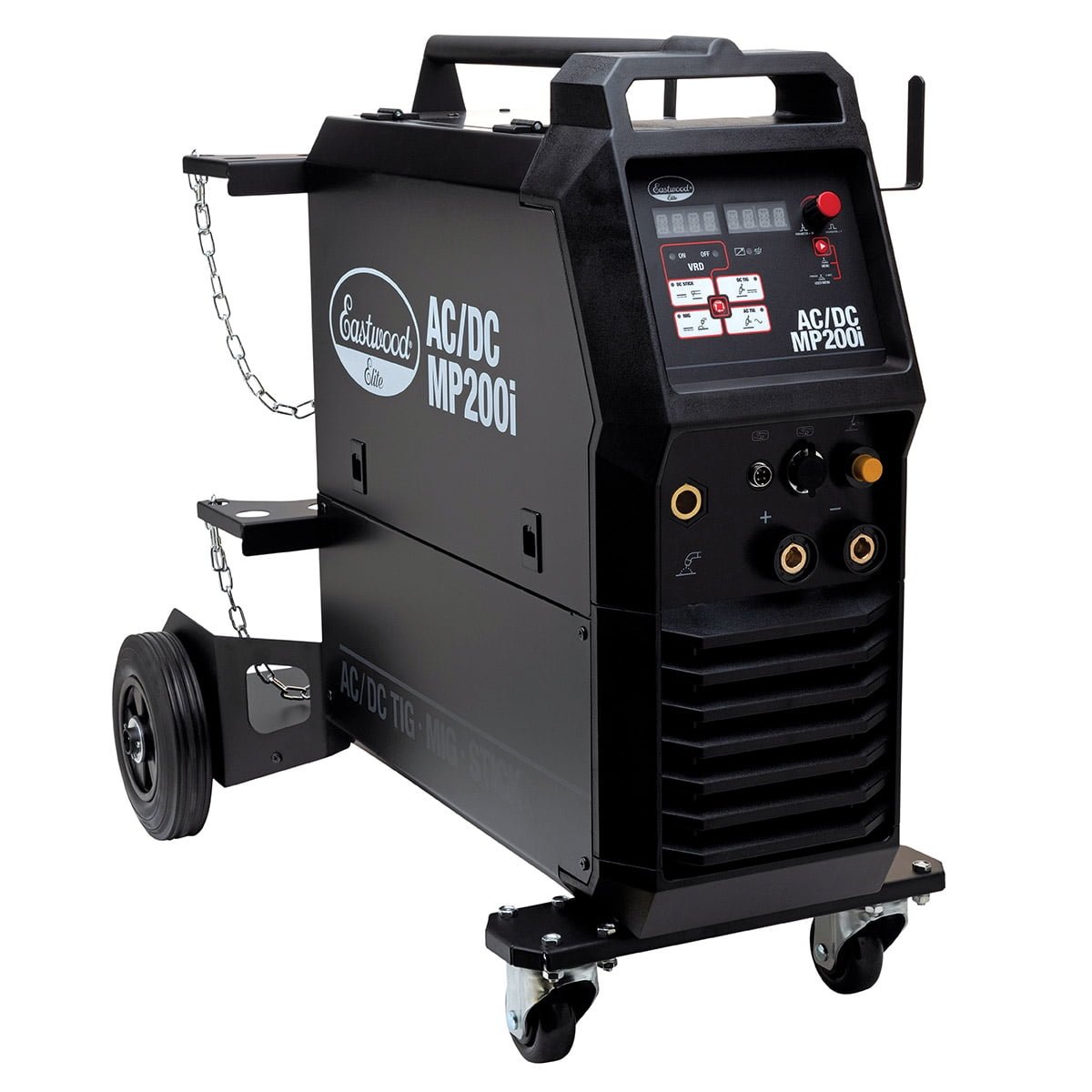

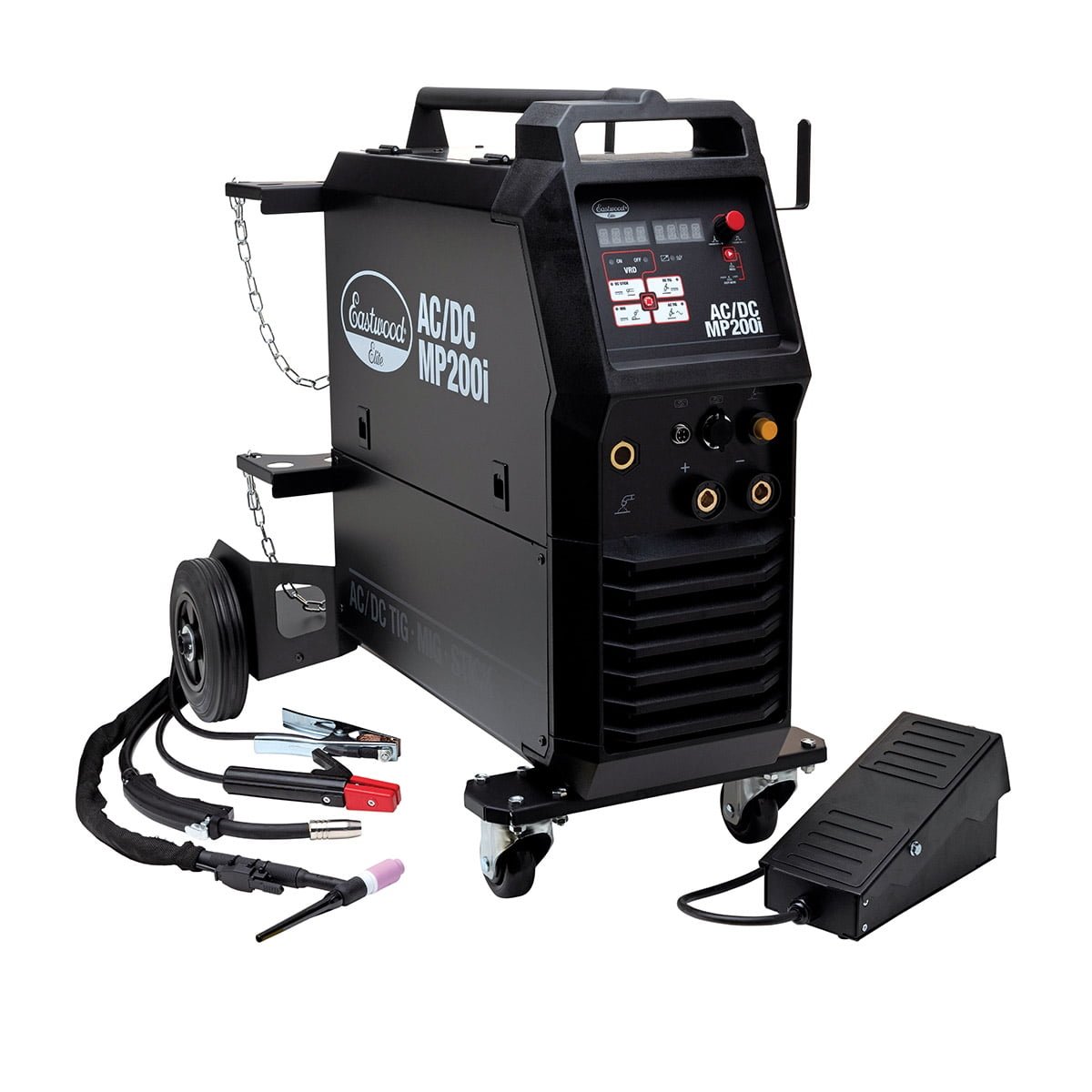

Finally a TIG welder with professional features that can also MIG and Stick weld. Most multi-process machines are MIG units that only offer the option to TIG weld steel and it’s often scratch start without a foot pedal. Eastwood has raised the bar with this MP welder that not only has MIG and Stick options but is a fully functioning TIG machine with high frequency start and rocker style foot pedal so you can TIG weld steel, stainless and aluminum. It’s like buying a quality TIG machine that can also MIG and Stick weld!
Specifications
Input Voltage (V): 240 VAC, 50/60 Hz, 1 Phase and 120 VAC 50/60 Hz, 1 Phase
No Load Voltage (V): 68V
Rated Input Current (Amps) 240V: MIG = 34.2, TIG = 25.7, ARC = 40.0
Rated Input Current (Amps) 120V: MIG = 20.0, TIG = 20, ARC = 19.2
Output Current Adjustment (Amps) 240V: MIG = 40-200, TIG (DC) = 5-200, TIG (AC) 10-200, ARC = 20-200
Output Current Adjustment (Amps) 120V: MIG = 40-120, TIG (DC) = 5-120, TIG (AC) = 10-120, ARC = 20-120
Duty Cycle 240V: MIG = 40% @ 200 AMPS / 100% @ 130 AMPS, TIG = 50% @ 200 AMPS / 100% @ 140 AMPS, ARC = 40% @ 200 Amps / 100% @130 AMPS
Duty Cycle 120V: MIG = 60% @ 80 AMPS / 100% @ 60 AMPS, TIG = 60% @ 100 AMPS / 100% @ 80 AMPS, ARC = 60% @ 60 Amps / 100% @50 AMPS
MIG Wire Size: .023 to .035
Power Factor: 0.73
Efficiency (%): 80%
MIG Wire Feed Speed (in/min): 35 – 590 Inches Per Minute
Pre Flow Time (seconds): MIG 0, TIG 0.25
Post Flow Time(seconds): MIG 1.0, TIG 0 – 30
TIG Welding Starting Method: High Frequency Start
Cooling Method: Dynamic Cooling Fan (only runs when required)
Gas System: Fully Independent MIG and TIG Systems
Gas Flowmeter: Gas Flowmeter, CO2/Argon Compatible
Welding Gas Bottle Capacity: Two 40-125 cu ft Cylinders
Dimensions: 35.20″ x 19.88″ x 30.28″
Weight: 95.68 lbs. (43.4 kg)
Plug Type: NEMA 6-50P
Wire Spool Sizes: 4 or 8 inch wire spools (11 lb. max weight)
Contents
Included in 2 boxes
Eastwood Elite 200 Amp AC/DC Multi-Process Welder
Rear wheel assembly
Front caster assembly
(2) Double welding gas cylinder bracket
(15) M5 x 12mm screws
(3) M5 nuts
(6) M5 Flat washers
(3) M5 lock washers
(2) Gas cylinder chains
(2) Shielding gas hoses
(1) Ground clamp with 10′ cable
(1) MIG welding gun with 8′ cable and 0.030″ contact tip installed
(1) 0.030″ (0.8mm) contact tip
(1) 0.035″ (0.9mm) contact tip
(1) Contact Tip Wrench
(1) Flex Head TIG Welding Torch (WP-17F), with 12’ cable and 3/32” Gas Lens Collet Body, #8 “Gas Lens-Style” Gas Cup, 3/32” Collet, Long Back Cap, Collet Body Installed
(1) 1/16″ Collet
(1) #8 Gas lens style gas cup
(1) 1/16″ Gas lens collet body
(1) Tungsten – 3/32″ x 6″, Red
(1) Foot pedal (no adjustment dial) with 16′ cable
(1) Electrode Holder for Arc Welding
(2) Cable hanging hooks
(2) Gas regulators (CO2/Argon)
(1) Adaptor Cord (24″)
Instruction Manual
- MIG TIG and ARC Weld with this Elite Multi-Process Welder – True AC/DC TIG with High Frequency Start and Foot Pedal for Precision Fabrication
- MIG weld thin sheet metal to 3/8 inch thick steel and stainless – TIG weld steel, stainless and aluminum up to 1/4 inch – Operates on either 120 or 240 Volts

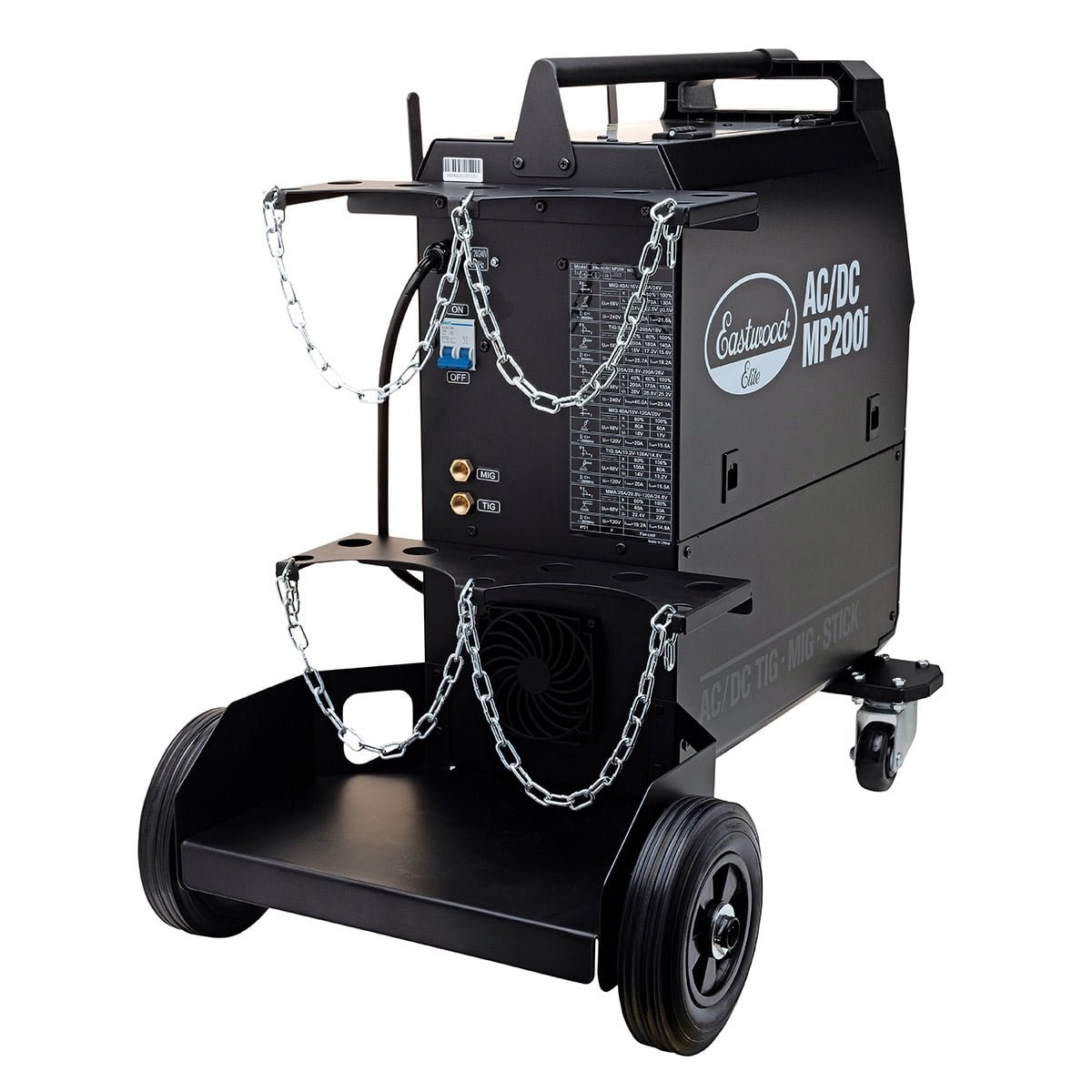

- Holds 2 bottles for both MIG and TIG welding, Includes two gas regulators, Fully independent MIG and TIG Gas Systems
- True AC/DC TIG welder with foot pedal and high frequency start! WP17 Flex Head TIG Torch included for greater flexibility
- 90 Day Money Back Guarantee with a 3 Year Warranty
