Description

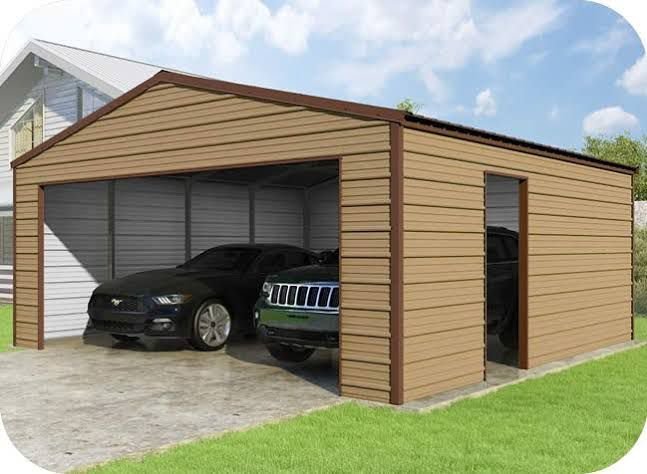

The VersaTube Frontier series do-it-yourself garage kit features a vertical application of sheet metal roof panels and horizontal sheet metal wall panels. VersaTube adds rounded eaves for extra protection.
Roof purlins are included for vertical sheet metal application, but no side girts are required. Fewer frame components makes the Frontier design a lower cost alternative to our Summit building style. And assembly time is drastically reduced with our patented Slip-Fit frame connections.
VersaTube uses a new technology called a Slip-Fit frame system. This allows for very fast assembly giving the novice builder a great way to construct their own do it yourself home garage in just one day using common household tools.
This item is Made In the USA!
- built from American steel in 2″ x 3″ galvanized tubing
- built from American steel in 29 gauge sheet metal panels with 5 rib profile 36″ apart
- triple coated protection! A triple layer of corrosion protection is rust resistant
- Roof, walls & trim, including trim for 16’W x 7’H garage door opening & trim for 36″W x 80″H eave side walk door opening included (doors not included)
- VersaTube uses a proprietary mandrel bending system giving their tubes superior strength and a cleaner look over other brands
- 20 Year Limited Frame & Paint Warranty
- manufactured right here in the USA in Tennessee and Arizona supporting local economies!
Designed for Do It Yourself Assembly!
- each garage kit is pre-engineered in a complete diy kit
- all parts needed to complete your kit are included! (doors sold separately)
- patented slip-fit connections are used for fast and easy assembly
- no special skills or tools are required! Just common household tools needed here!
- Ground or concrete anchors are included! *please select below
- 20 Year Limited Frame & Paint Warranty!
- Free FAST Shipping!
Specifications
Color: Please Select Desired Color Below
Style: Garage
Usage: Two Vehicle
Frame: 2″ x 3″ 14 and 15 gauge galvanized steel tubing
Roof, Sides and Back: 29 gauge steel panels, 3:12 roof pitch
Size: 24′ Width x 24′ Length x 9′ Side Wall Height (11′ 6″H Center)
Height Measurements: 11′ 6″ Center Height, 9′ Side Wall Height (Approximately 9′ Ground to Truss Clearance)
Frame Measurements: the actual Frame is 24′ long
Garage Door Opening Measurements: 16’W x 7’H (Door Not Included)
Side Door Opening Measurements: 36″W x 80″H (Door Not Included)
Snow Load Rating: 33 lbs per square foot
Wind Rating: 115 mph wind load
Weight: 3218 lbs.
Delivered Pallet Size: 40″W x 144″L x 16″H
