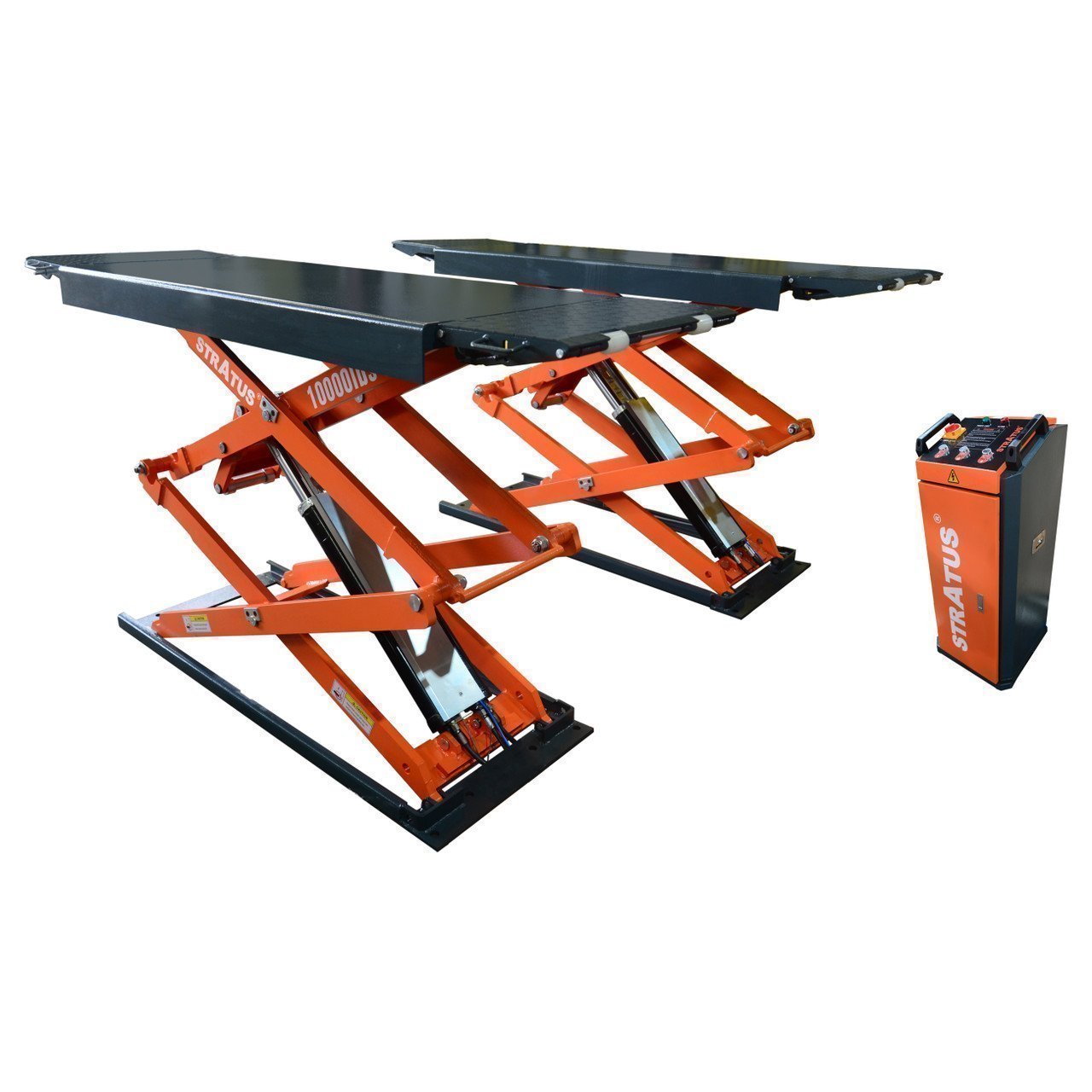

This low-profile double scissor lift comes with On-Ground surface mount or In-Ground flush mount design, it is pneumatic safety lock release with overload protection, easy to operate and maintain. Full size scissor car lift is suitable to hold 10,000 lbs. or less, ideally for inspection, repair and maintenance of various types of vehicles.
Important Notes
- A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
- Sales tax will be automatically waived for out of Texas Buyers
- Lift can ONLY be shipped to Commercial Address, Local Installer or Truck Terminal
- Buyer is responsible for unloading freight – freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
- There is an In-House pick-up discount of $380
Product Features
- Commercial grade open center full rise low profile scissor lift
- 2 in 1 design – On-Ground surface mount or In-ground flush mount (see detailed foundation plan)
- Pneumatic safety lock release
- Durable cylinders with anti-surge valves
- Overload protection
- Alloy solid steel X structure, good rust resistance and not easy to deform
- Ramp can be used as platform extension suitable for different length of chassis
- Wear-resisting bearings
- 9 lock position, each lock position is 2 1/8″ (55mm) apart.
- 8 pcs rubber pads included, 4 of each 1 1/2″ & 4″
- Low profile design, minimum height is only 4 5/16″
- 24V low voltage control system
- Platforms can be extended for long vehicles
- Self-lubricated bushing and bearing
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Product Specifications
| Model | UT10000 | |
| Capacity | 10,000 | |
| Lifting Time | ~90SEC | |
| Max Height | 72 1/16″ (1830 MM) | |
| Min Height | 4 5/16″ (110 MM) | |
| Runway Length without Ramps | 60 1/4″ (1530 MM) | |
| Runway Length with Ramps | 84 1/4″ (2140 MM) | |
| Overall Width | 85 13/16″ (2180 MM) | |
| Runway Width | 26 3/16″ (665 MM) | |
| Between Runway | 33 7/16″ (850 MM) | |
| Motor | 4 HP, 220V, 60 HZ, 1ph | |
| Oil | AW32 or AW46 | |
| Breaker | 30A | |
| Platform Weight | 2,006 LBS | |
| Platform Dimension | 69″ L * 29″ W * 19″ H | |
| Control Panel Weight | 198 LBS | |
| Control Panel Dimension | 44″ L * 18″ W * 22″ H |
