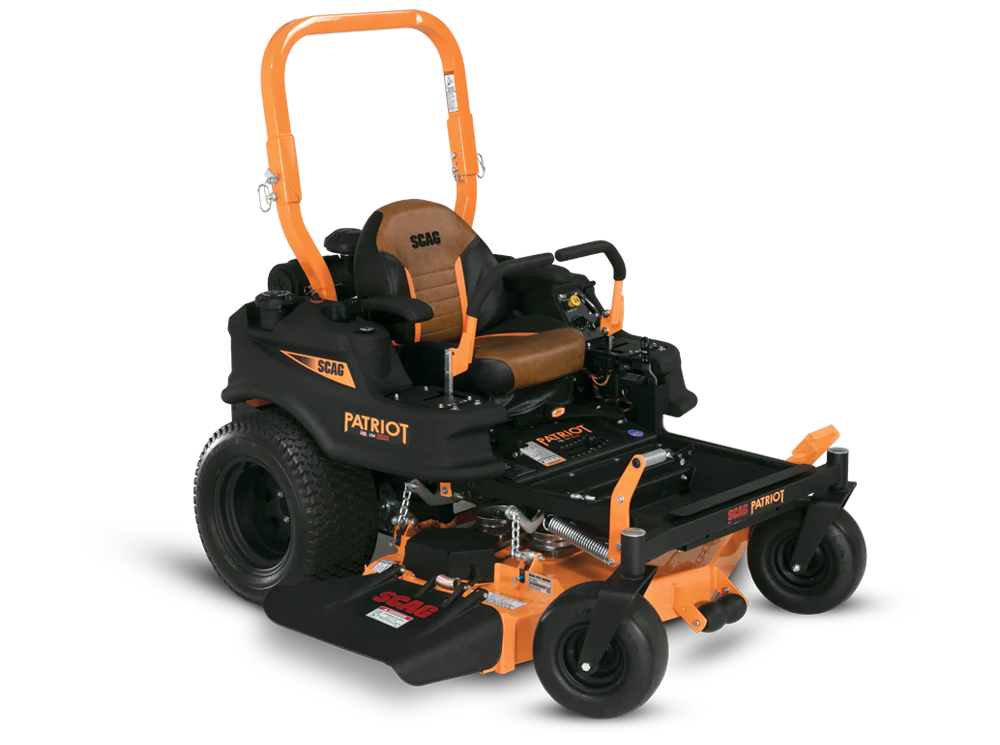

| Product Dimensions | 52″ Patriot | 61″ Patriot |
|---|---|---|
| Length | 73″ | 79″ |
| Width (chute down) | 64.5″ | 73.5″ |
| Width (chute in transport position) | 53″ | 62″ |
| Height (ROPS folded) | 46.5″ | 47″ |
| Height (ROPS up) | 61″ | 61″ |
| Weight | 907-911 lb | 952-956 lb |
| Specification | Patriot | |
|---|---|---|
| General | Total Fuel Capacity | 6.5 gallons |
| Drive Tires | 22″ x 10.5″-12″ (52″)
24″ x 12″-12″ (61″) |
|
| Caster Tires | 13″ x 6.5″-6″ | |
| Seat | Torsion-spring suspension seat | |
| Drive System | Drive System Type | Hydro-Gear ZT3100 Transaxle (52″)
Hydro-Gear ZT3400 Transaxle (61″) |
| Pumps | ZT3100 Internal Pump: 10 cc (52″)
ZT3400 Internal Pump: 12 cc (61″) |
|
| Motors | Internal Motor: 16 cc | |
| Forward Ground Speed | 8.5 mph (52″)
10 mph (61″) |
|
| Reverse Ground Speed | 5 mph | |
| Parking Brake | Foot-operated pedal | |
| Deck | Cutting Widths | 52″ and 61″ |
| Type | Hero Cutter Deck | |
| Cutting Height | 1.5″ to 5″ in .25″ increments | |
| Deck Lift | Foot-operated pedal | |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. | |
| Spindles | Aluminum housing with sealed ball bearings. | |
| Blade Engagement | Ogura GT2 (108 ft lb)
Adjustable air-gap for extended life. |
