Description
9,000 lb. Capacity
Overhead, Open-Floor design
Overall Height: 144″ (12′)
Asymmetric/Symmetric Arms
Automatic Arm Restraints
Single-Point Lock Release
Rubber Guards on Carriages
Dual Direct-Drive Cylinders
Powder Coat Finish
Free 8 Piece Truck Adapter Set
Mounting Hardware Included
Shipping Weight: 1,450 lbs.
5-year Structural Manufacturer Warranty, 2-year Hydraulic-Power Manufacturer Warranty

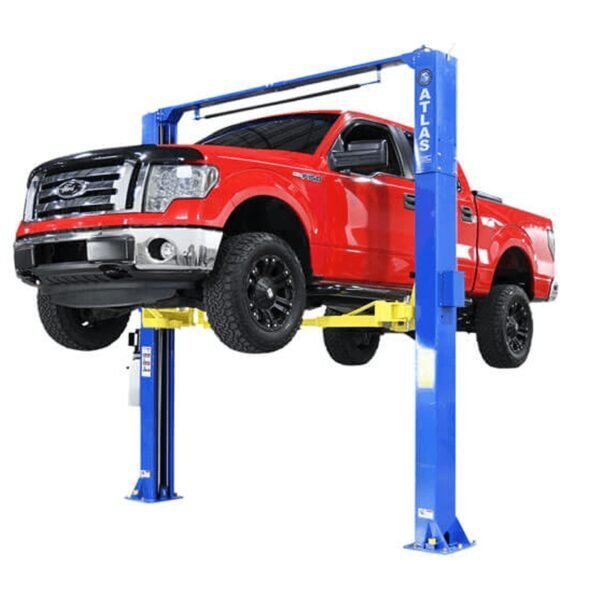

The Atlas® PRO-9D two post above ground lift is the perfect choice for those smaller commercial repair facilities or the “Mr. Homeowner” who demand the highest quality at the absolute best price. The 12 foot tall Atlas® PRO-9D is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer.
The Atlas® PRO-9D has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks.
The PRO-9D has dual direct drive cylinder, this direct drive system, with fewer moving parts, ensures years of excellent lifting service from your Atlas above ground hoist.

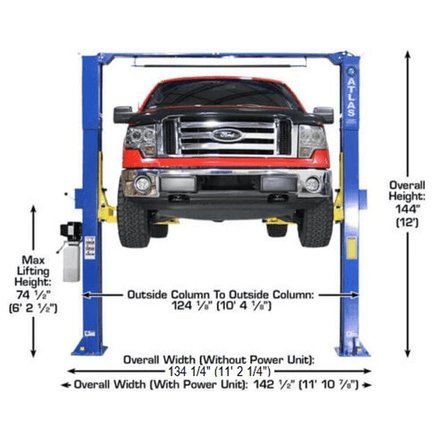

Capacity: 9,000 LB.
Overall Height: 144″ (12’)
Overall Floor Width: 134 1/2″ (11’ 2 1/2″)
Outside Column to Outside Column: 124 7/8″ (10’ 4 7/8″)
Maximum Lift Height (Without Adapters): 68″

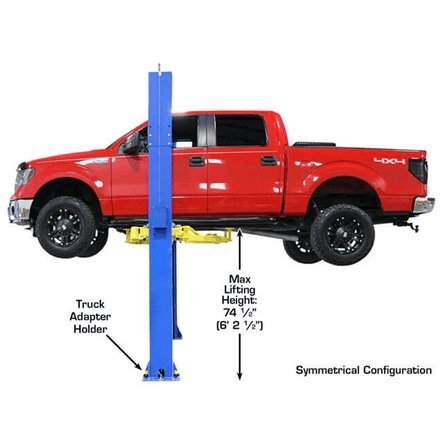

Maximum Lift Height (With Adapters): 74 1/4″
Minimum Arm Height: 4 1/2″
Inside Column: 110” (9’ 2”)
Drive Thru: 100” (8’ 4”) Symmetric/ 90 1/2″ (7’ 6 1/2”) Asymmetric
Column Size: 7 1/4″ x 11″
Column Thickness of Steel: 5mm
Base Of Lift: 14 1/4″ x 18″
Motor/Electrical Requirement: 220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight: 1,450 LBS.
Adapter Heights: 4 Each 1.5”, 5”
Arm Hole/Adapter Peg Size: 1.5”
