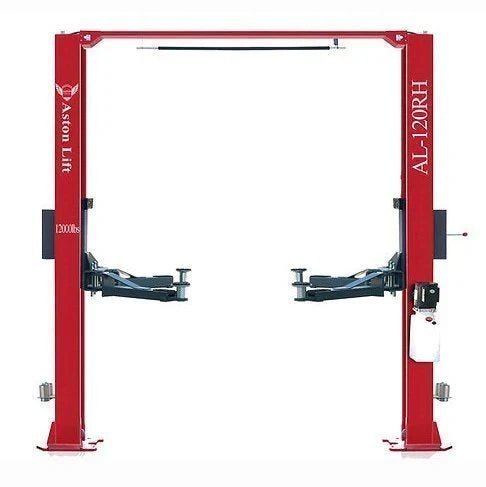

The Aston® 12000 lbs. 2 Post Car Lift with Single Point Lock Release is your reliable partner for effortless vehicle maintenance. Crafted with robust 0.24″ (6mm) steel, this lift ensures durability and stability.
With a lifting capacity of 12,000lbs, it effortlessly handles various vehicles. The Single Point Lock Release simplifies operation, while the padded bar and rubber door guards prioritize safety.
Upgrade your garage with the Aston® 12000 lbs. 2 Post Car Lift, your go-to solution for hassle-free vehicle maintenance.
Features
- Single Point Lock Release
- Plate Type Arm Restraints
- Column Thickness of Steel: 0.24″ (6mm)
- Carriage Thickness of Steel: 0.24″ (6mm)
- Arms Thickness of Steel: 0.24″ (6mm)
- Stronger than old-style Tubular-Type
- Lifting Capacity of 12,000lbs
- Padded “shut off” bar
- Rubber Door Guards
- Made In China.
- One Year Manufacturer Warranty (Parts Only, No Labor)
Specifications
| Model | AL-120RH |
| Capacity | 12000 lbs. |
| Max Lift Height | 75″ (1905mm) |
| Minimum Pad Height | 4.33″ (110mm) |
| Overall Height | 161.4″ |
| Overall Width | 128″ |
| Width Between Columns | 118″ |
| Drive thru Clearance | 111″ (2819mm) |
| Lifting Time | 40s (Adjustable) |
| Lowering Time | 30s (Adjustable) |
| Column Thickness of Steel | 0.31″ (8mm) |
| Carriage Thickness of Steel | 0.31″ (8mm) |
| Arms Thickness of Steel | 0.24″ (6mm) |
| Motor Power | 3.0kw |
| Voltage | 220V 1ph |
| Noise | <70db |
| Net weight | 1940 lbs. (880kg) |
| Gross weight | 1940lbs. (880kg) |
| Packing size | 161″ x 21″ x 32″ (4089x533x813mm) |
| Pump Packing size | 36″x12″x14″ (900x300x350mm) |
