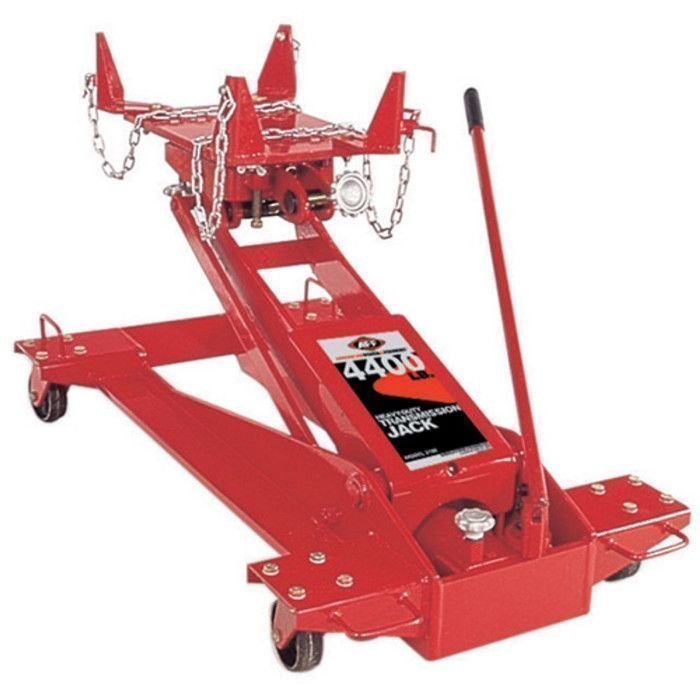

This Jack is a Beast! AFF has the only super heavy-duty transmission jack with a whopping 4,400 lb. capacity. Built “forge-tough” to handle removal, transport and installation of transmissions, transfer cases or differentials on heavy-duty trucks, buses, agricultural and construction equipment.
Features
- The cradle is completely adjustable and tilts for easy alignment of transmission
- Features corner brackets that are fully adjustable
- Convenient tool trays on each side for small parts and tools when operating
- The hydraulic system is protected from overload with a safety bypass system
- The handle is 32 inches long and can pivot a full 360 degrees around the pump handle
- Strong commercial-grade swiveling casters with 4″ wheels to roll easily across concrete auto shop floors
Specifications
- Capacity: 4400 lbs.
- Low Height: 8-1/2″
- High Height: 34″
- Forward Tilt: 15 degrees
- Rear Tilt : 30 degrees
- Lift Tilt: 12 degrees
- Right Tilt: 12 degrees
- Head Width: 12″ – 18″
- Head Length: 16″ – 20″
- Width: 26″
- Length: 43″
- Shipping Weight: 374 lbs.
- Warranty: (1) Year
