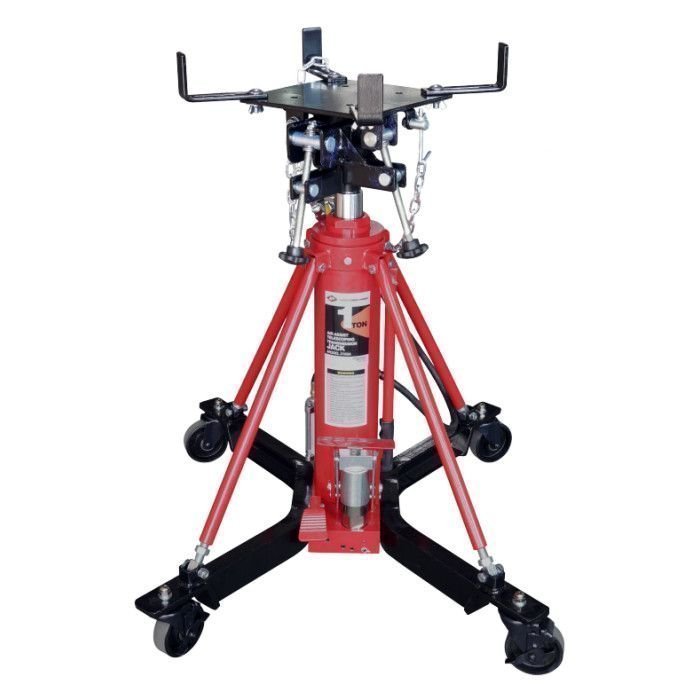

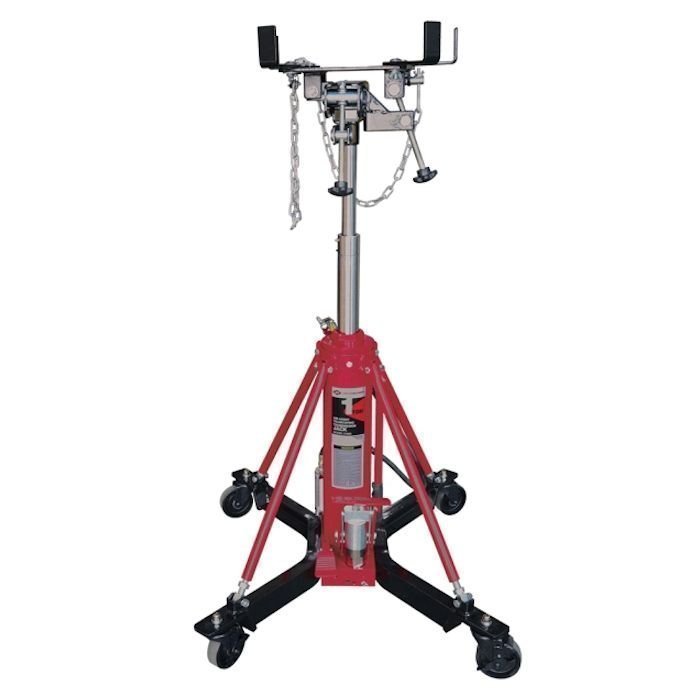

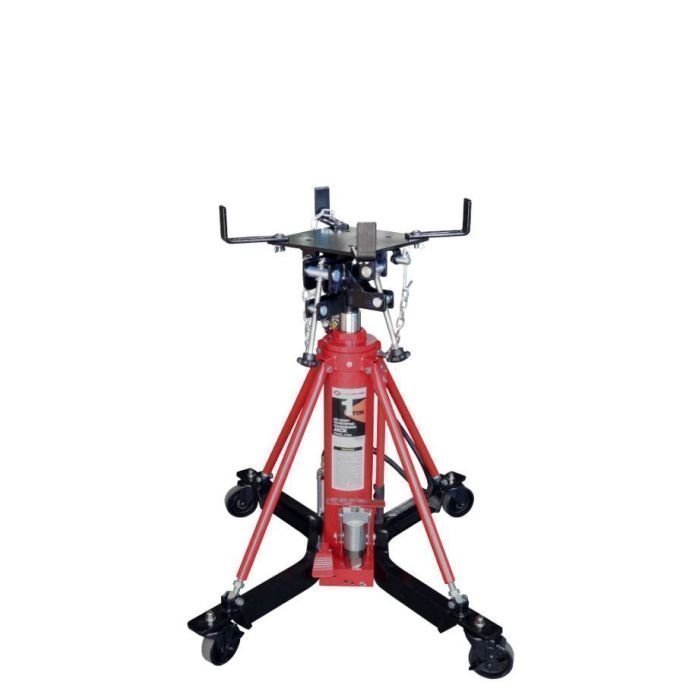

American Forge & Foundry’s Transmission Jacks provide the service technician the capability for “one-man” removal and installation of bulk transmissions, differentials, transfer cases, fuel tanks, and more. AFF offers telescoping, low profile, and high lift styles in both manual hydraulic and air assist.
Features
- Two stage telescopic ram designed for medium duty truck transmissions, transfer cases, and differentials
- Double pump hydraulic system for quick lift operation
- Powder coat finish provides resistance to corrosion, chemicals, and scratches
- Chrome plated pump core and piston rod reduces friction and provides long service life
- Adjustable saddle with corner bracket and safety chain
- Optional Fuel Tank Adapter available. Includes safety straps and grounding cables.
Specifications
- Operation: Air Assist
- Capacity: 2,000 lbs.
- Ram Stages: 2
- Low Height: 37″
- High Height: 76″
- Front Tilt: 28°
- Rear Tilt: 49°
- Base Width: 28″ x 32″
- Weight: 183 lbs.
- Warranty: (1) Year Limited
